Air Handlers (AHUs)

AIR HANDLING UNIT SOFTWARE

A fully-integrated software application for the design, selection and manufacture of AHUs.

Here at Computair we are very proud of our WinTADS AHU program, and we are continually developing and enhancing the WinTADS range in order to provide customers with industry-leading software. There is a program to suit your needs, from WinTADS Lite, which caters for standard, pre-engineered AHUs, to WinTADS Manufacturing, which caters for custom units and can accommodate even the most complex of requirements.

CONTACT US

WinTADS

WinTADS is a fully-integrated software application for the design, selection and manufacture of Air Handling Units (AHUs). WinTADS works from basic principles, which allow for standard or completely custom units to be designed. Standard unit sizes may be entered and height, width and length can be varied. The system displays information allowing the operator to make the optimum selection based on a job’s individual requirements.

Our air handler design software versions

Tailored to your needs

WinTADS Lite

An entry-level estimating and selection program for standard, pre-engineered Air Handling Units.














WinTADS Lite+

A sales program for configurable units, with the ability to mix and match unit heights and widths from the list of standard unit sizes.












WinTADS Custom

A program designed for manufacturers of custom AHUs, with the ability to define units of any height or width in increments as small as one millimeter. Provides support for multiple fans in grid arrangements, vestibules and complete coil arrangements.







WinTADS Manufacturing

An advanced program offering full manufacturing outputs, casework panel arrangements to your specification and manufacturing drawing and cut list outputs. The program can link to nesting systems and offers more complicated topologies and additional components and functionality. Material costing, labour times and shop floor planning can all be driven from the program.

The WinTADS Process

Custom air handling software

Step 1

Administration (references, ranges)

Obtain unit size (select from a grid of viable options)

Step 2

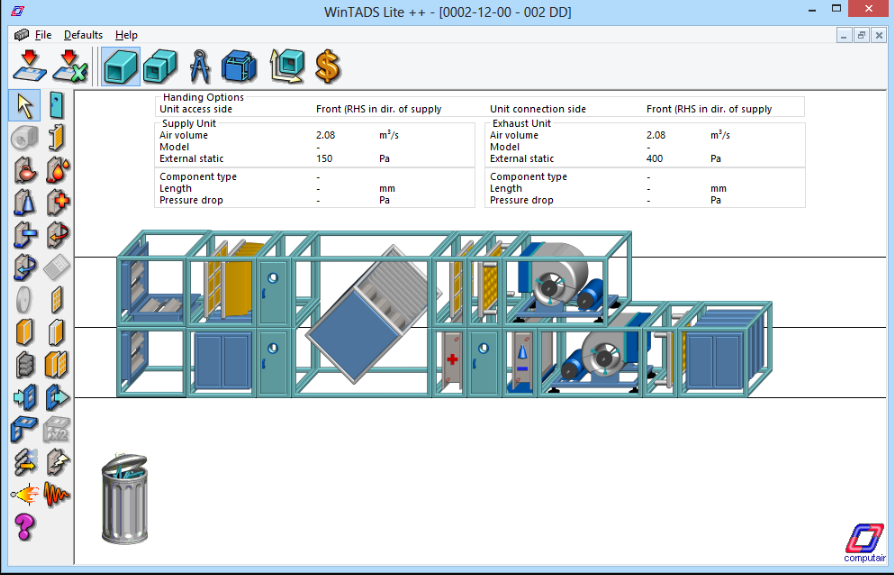

Design the unit

(Drag and drop components to make up a unit)


Step 3

Component selection

(Enter details of each component required)


Step 4

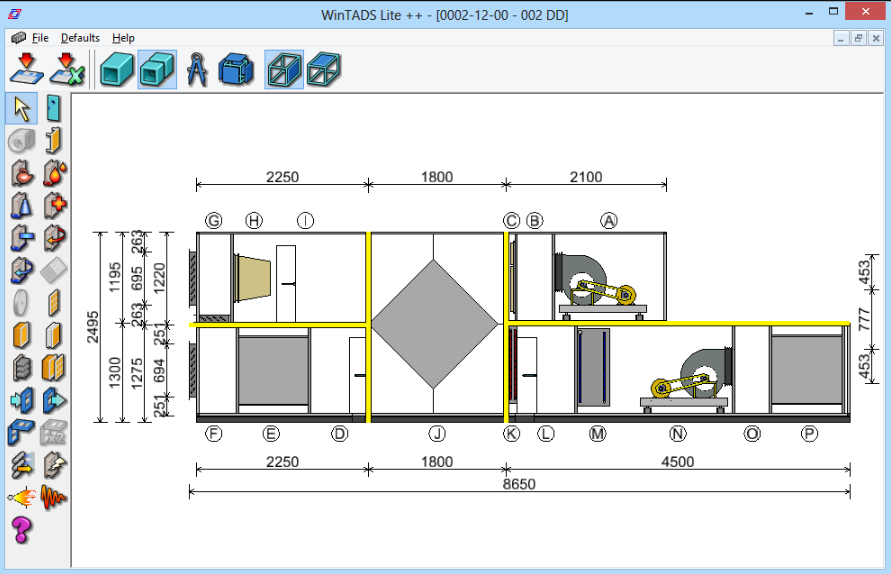

Add vestibules and section unit

(Divide into shipping sections for transportation)

Step 5

Derive a price from costs with mark-up


Step 6

Generate outputs/drawings and manufacturing details

(Technical specification, 3D drawing and cost breakdown)

Compare our air handler software

Need something more? We’ll be happy to help

Lite

Entry level estimating and selection system for ‘pre-engineered’ AHUs

✘ Configurable units ✘ Ability to mix and match unit heights and widths from standard unit sizes ✘ Define units of any height or width in increments as small as one millimeter ✘ Support for multiple fans in grid arrangements ✘ Full manufacturing outputs

Lite+

Entry level estimating and selection system for ‘pre-engineered’ AHUs

Configurable units Ability to mix and match unit heights and widths from standard unit sizes ✘ Define units of any height or width in increments as small as one millimeter ✘ Support for multiple fans in grid arrangements ✘ Full manufacturing outputs

Custom

Entry level estimating and selection system for ‘pre-engineered’ AHUs

Configurable units Ability to mix and match unit heights and widths from standard unit sizes Define units of any height or width in increments as small as one millimeter Support for multiple fans in grid arrangements ✘ Full manufacturing outputs

Manufacturing

Entry level estimating and selection system for ‘pre-engineered’ AHUs

Configurable units Ability to mix and match unit heights and widths from standard unit sizes Define units of any height or width in increments as small as one millimeter Support for multiple fans in grid arrangements Full manufacturing outputs

Why pick Computair?

A few words

Formed in 1980 and still growing, we have developed a reputation for market-leading, bespoke technical software for the HVAC-R sector.

The proof of our software lies in its global use throughout the HVAC-R industry. Using  our engineering background and knowledge, the software systems are customised to meet the exact requirements of the customer. The software suite is continually updated and enhanced as new technology becomes available. All Computair programmers are directly employed and we do not sub-contract to other companies, enabling us to keep quality control at the highest level.

Trusted internationally

We have clients in all of the countries highlighted below

CONNECT WITH US

Contact us

Interested in learning more about how we can meet your HVAC-R software needs?
